Pakotoo Document Cameras
Put the paper on your desk onto everyone else’s screen
A Pakotoo document camera points down at a worksheet, a textbook, a drawing or a circuit board and sends that live picture to your computer over one USB cable. Three models are on sale now, at 5MP and 8MP, all covering up to A3 and all able to turn around and work as a webcam.
The Three Pakotoo Document Cameras
5MP autofocus

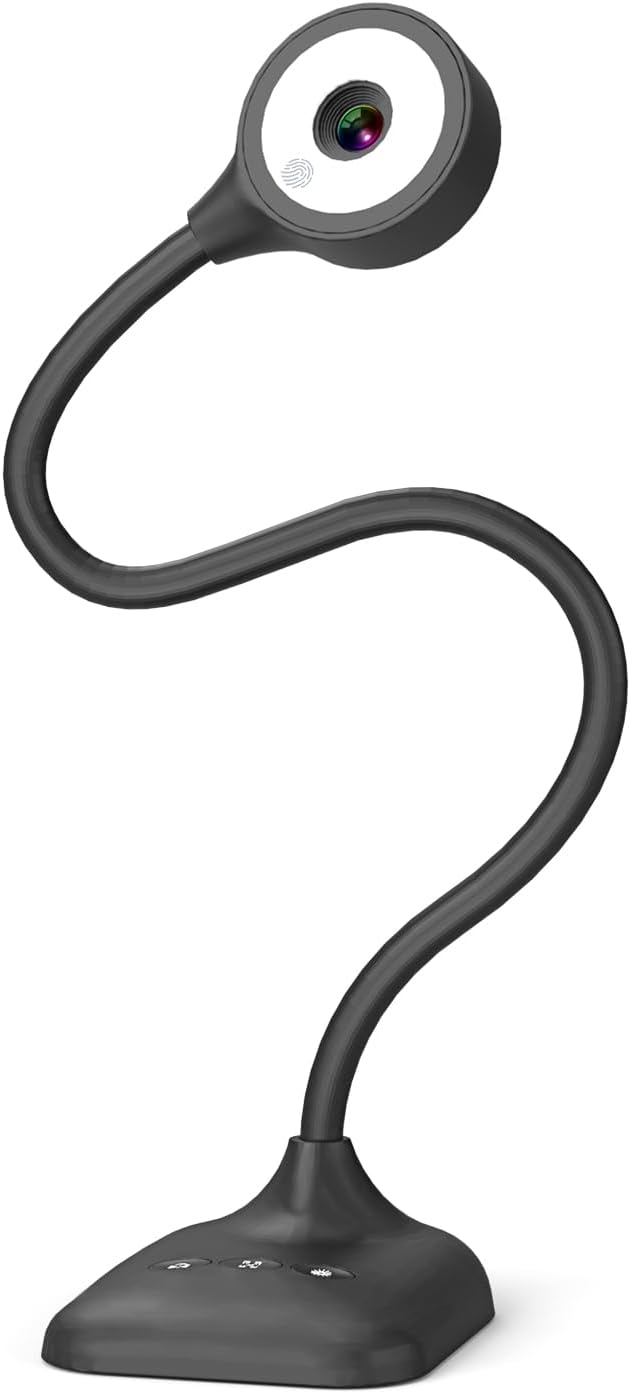

Pakotoo PA-800
5MP, flexible gooseneck
Everyday worksheets, handwriting and video calls, where the camera moves between the desk and your face all day.
The gooseneck bends and stays where it is put, which suits a desk where the camera swings toward the page for a demonstration and back toward the speaker afterwards. Coverage reaches A3, so a letter-size worksheet sits in frame with room left over for a hand, a ruler or a second sheet.
- 2594 x 1944 stills, video to 30 fps
- Autofocus on a button press, from 3.94 in
- 3 LED levels, 5 exposure levels
- Horizontal image mirroring, built-in mic
8MP autofocus

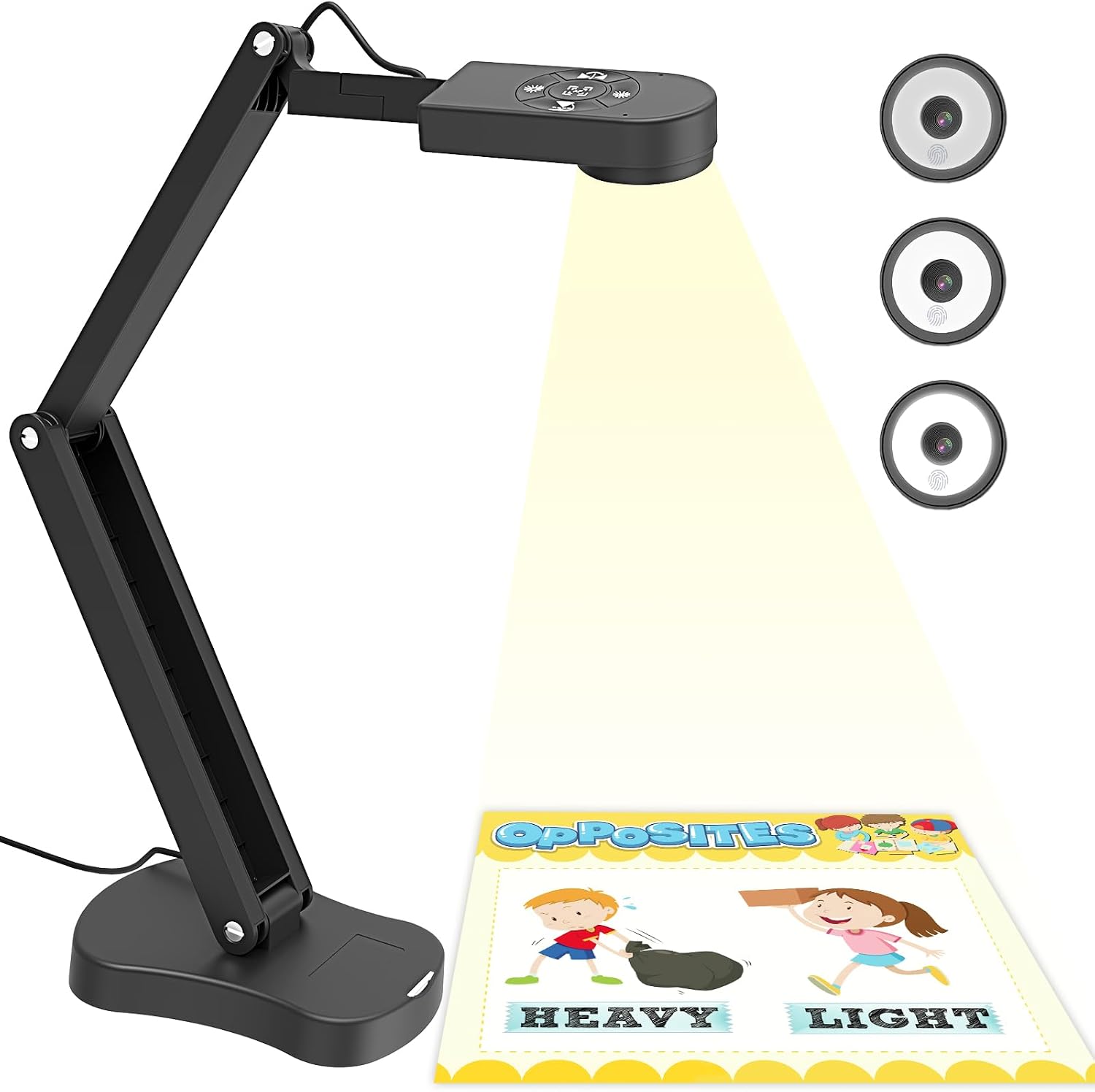

Most teachers pick thisPakotoo KB700
8MP, folding articulated arm
Classrooms projecting onto a large display, where small print has to stay readable from the back row.
Ten exposure steps instead of five is the reason to pick this one for a room you cannot control. Fluorescent tubes overhead, a window on one side and a sheet of white copy paper underneath are exactly the conditions that need fine adjustment. The multi-joint arm folds down to about 3.5 x 4.3 x 17.3 in and weighs around 0.8 kg, so it travels between rooms in a bag.
- 3264 x 2448 stills, video to 30 fps
- Capture area 16.5 x 11.6 in, roughly A3
- 3 LED levels, 10 exposure levels
- Flips left to right and top to bottom
8MP manual focus

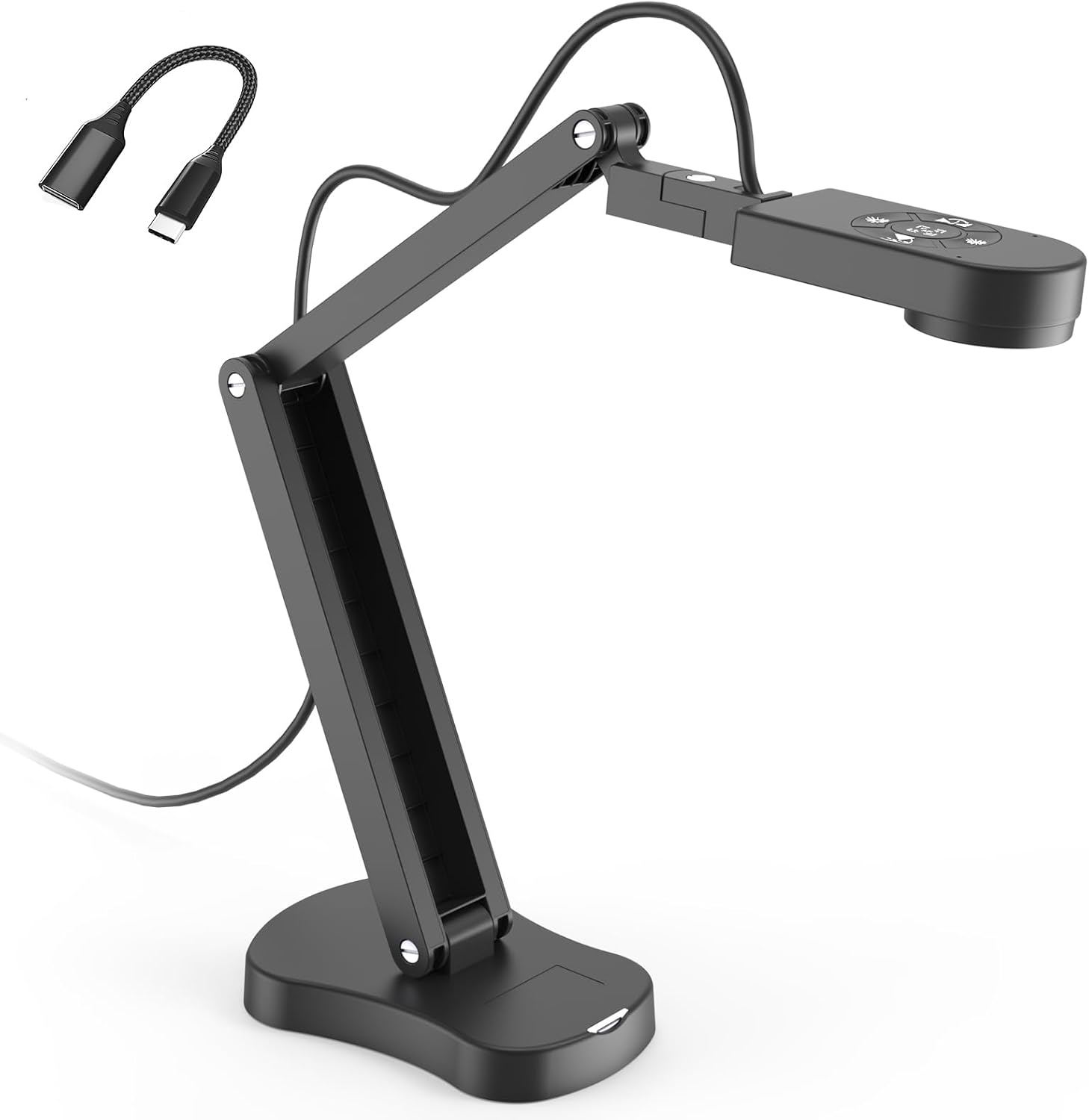

Pakotoo 8MP Manual Focus
8MP, folding articulated arm
Subjects with depth: circuit boards, craft projects, specimens, anything where you decide which surface stays sharp.
Autofocus does one job well and one job badly. It handles a flat page without being asked, and it wanders when a hand passes through the frame or when two surfaces sit at different heights. Setting focus yourself removes that behaviour. For repair work or a layered model, that control is worth the extra step at setup.
- 3264 x 2448 stills, video to 30 fps
- Manual focus control, A3 and A4 coverage
- 3 LED levels, 5 exposure levels
- Hardware image inversion, built-in mics
The range side by side
| Model | Max resolution | Focus | Light control | Arm | Best fit |
|---|---|---|---|---|---|
| PA-800 | 2594 x 1944 | Autofocus button | 3 LED, 5 exposure | Flexible gooseneck | Daily lessons and calls |
| KB700 | 3264 x 2448 | Autofocus button | 3 LED, 10 exposure | Folding articulated | Classroom displays |
| 8MP Manual Focus | 3264 x 2448 | Manual | 3 LED, 5 exposure | Folding articulated | Objects with depth |
All three connect over USB 2.0 and none has an HDMI socket. Every model reaches A3 coverage, so the choice comes down to resolution, how focus is handled, and whether the arm bends or folds.
5MP or 8MP
5MP is enough when
Your subjects are worksheets, handwriting, open books and ordinary demonstrations, and the audience watches on a laptop screen or a normal classroom display. At 2594 x 1944 those things are legible with room to spare.
The PA-800 keeps everything else that makes a document camera useful: autofocus, A3 coverage, three LED levels, exposure adjustment and a gooseneck that holds any position. Nothing on that list is a resolution feature.
Go to 8MP when
Someone will need to look closely at part of the picture. Small print in a textbook, the fine lines of a technical drawing, the markings on a component, the texture of a specimen. 3264 x 2448 holds more of that detail before the image gets stretched across a large screen.
A large room pushes the same way. Projecting onto a 75 inch display or a smartboard enlarges every flaw in the source, and the extra pixels give you something to enlarge.
Neither number rescues a badly lit or badly focused shot. A 5MP camera positioned close over a well lit page will beat an 8MP camera hovering at full A3 height every time, because framing decides how many pixels land on the thing you actually want people to read.
What People Put Under the Lens
Teaching a class in person
Put the worksheet under the lens and work through it by hand while the class watches the same page on the board. Students see the order of the steps, not a finished answer that appears on a slide. A book goes under there too, with no scanning beforehand, and so does a student’s own work when it is worth showing to the room.
Online lessons and tutoring
Zoom, Google Meet and Teams treat the camera as an ordinary video source, so a remote student sees your pen moving across the paper in real time. Switch the app back to your laptop camera when the lesson returns to discussion, or swing the Pakotoo arm around and keep using the one device.
Proctored online exams
Several online degree programs require a second camera that shows your desk and the room during a proctored test, and a built-in laptop webcam cannot point at both. A document camera on an adjustable arm does. Check the specification your program publishes before ordering, because the requirements differ between schools and testing providers.
Video calls at monitor height
Raise the arm until the lens sits level with the middle of your screen and you stop appearing to look away from whoever you are talking to. The camera takes up a fraction of the desk a tripod webcam needs, and the LED fills in a face lit only by a monitor.
Recording and OBS
OBS reads the camera as a standard USB source, so the overhead view can sit in a scene next to screen capture, slides or a second camera. Pakotoo supplies the picture. Layouts, overlays, cropping and scene switching happen in the software, which is the part people sometimes expect the hardware to do.
Showing an object, not a photo of one
A science sample, a coin, a seedling, a mechanical part, a knitting stitch halfway through. Anything that fits under the lens and can be focused will show, and the audience watches your hands do the work rather than seeing the result afterwards. Move the camera closer for a small part and higher for a whole experiment.
Setting One Up Takes About a Minute
Plug it into the computer
The camera runs over USB 2.0 and draws its power from the same cable. A USB-C adapter comes in the box for machines without a rectangular USB-A port, including USB-C MacBooks. No Pakotoo driver has to be installed for ordinary use.
Choose it in the app
This is the step people miss. Windows, macOS and most conferencing apps keep using the built-in webcam until you tell them otherwise. Open the video settings in Zoom, Meet, Teams or OBS and pick the USB camera from the list. If nothing appears, check that the app has camera permission in the operating system.
Aim, light and focus
Frame the part that matters instead of the whole desk, then focus. On the PA-800 and KB700 that means pressing AF once. On the manual-focus model, adjust until the surface you care about is sharp. Refocus whenever you change the height or swap a flat page for a thicker object.
| Operating systems | Windows, macOS, ChromeOS and Linux. Older Windows versions vary by model documentation. |
| Video apps | Zoom, Microsoft Teams, Google Meet, Skype, OBS and anything else that accepts a standard camera input. |
| Connection | USB 2.0, with a USB-C adapter supplied for computers that have no USB-A port. |
| Audio | Microphones are built into the camera assembly, available to any app that lets you pick an input device. |
What These Cameras Do Not Do
It does not plug into a projector
There is no HDMI output on these models. The computer sits in the middle. One USB cable carries the picture into the machine, and the machine reaches the screen using the display connection it already has. What lands on the wall is your desktop with the camera window open on it, which is also how the same view can be recorded or sent to a remote class at the same moment. Anyone specifically after a standalone visualizer that plugs straight into a projector needs different hardware.
It does not run from an iPad or a phone
These are computer cameras. A USB-C connector on both ends does not by itself make two devices compatible, because the receiving device still has to support an external camera the way a desktop operating system does. Plan on a Windows PC, a Mac, a Chromebook or a supported Linux machine.
It is not a flatbed scanner
For archiving a stack of paper, a scanner wins. It holds the page flat, lights it identically every time and produces a repeatable file. A document camera gives you a live picture instead, which is the right tool for teaching, demonstrating and conferencing but the wrong one for a digitizing project.
There is no optical zoom
Getting closer to the subject is how you fill the frame. Enlarging a small section of the image afterwards spreads the same pixels over more screen and softens the detail you were trying to see. Lowering the camera 4 inches usually beats any zoom control in the software.
Most disappointed buyers in this category wanted one of the four things above. Reading this section before ordering saves a return, and it is the reason it sits here instead of at the bottom of the FAQ.
Getting a Clearer Picture
The LED and the exposure control are not the same knob
The LED adds light to the subject. Exposure changes how bright the camera renders whatever light is already there. When a page looks dim, raise the LED. When the whole image looks washed out or murky, change exposure instead. Pushing both to maximum is the usual reason white paper turns into a featureless glare.
Frame tight, not wide
A3 coverage is a ceiling rather than a default. An 8MP sensor aimed at the entire A3 area spends far fewer pixels on one word than the same sensor positioned over just that word. For small handwriting or a tiny component, come down close and let the subject fill the frame.
Glossy pages need a different angle, not more light
Coated textbook paper and laminated cards bounce the LED straight back into the lens. Turning the LED up makes the hotspot worse. Tilt the camera a few degrees, shift the page, or work off softer room light and drop the LED a level.
Fix the orientation at the camera
When text arrives backwards or upside down, use the flip controls on the camera body rather than a setting inside one app. Correcting it in hardware means the feed stays right when you move between Zoom, OBS and a recording tool. Worth checking first: many apps mirror your own preview while sending the correct image to everyone else.
What Owners Say
I purchased this camera due to the external webcam requirement for WGU nursing. This camera meets all the specification requirements for WGU. I’ve had no issues with the functionality/use or any of my proctored...
Maria
I am on multiple calls A day with video. This is the only camera I use anymore because one of the nice advantages is it's can sit on my desk it doesn't take up much space it has a light that does that does a go...
Chad B
I use this as a document camera when teaching my classes via zoom or recording lectures. It is easy to set up and use! Does a great job of displaying my notes during class. It is lightweight and good quality.
Stephanie Hawk
I bought this for my son's online art classes so his teacher could see his drawings on the desk. It works really well. The camera is stable, easy to adjust, and the picture is clear. It connected to our compute...
Lenamano
This is an easy to use digital accessory capable of substituting for an old timey overhead projector. It plugs into a USB A port, or with the included adapter, to USB C, and can be opened by selecting it as a c...
North O'Seattle
This document camera works well for MacBook with simple plug-and-play setup. The adjustable arm is convenient, and image quality is clear. It’s a reliable, easy-to-use option for presentations or teaching.
Jackie
About Pakotoo
Pakotoo builds one kind of product: USB document cameras for teaching, presenting, demonstrating and webcam use. The current family spans 5MP and 8MP capture, A3 coverage, adjustable arms, built-in illumination and orientation controls you operate from the camera body rather than from software.
The design priority runs through all of it. Keep physical material visible during digital communication. A worksheet should be shown without scanning it first. A demonstration should stay live rather than becoming a recording made the night before. An object belongs on the desk instead of being held up in front of a laptop.
That is also why these connect to a computer instead of carrying their own HDMI output. The computer is where the conferencing, the recording and the projection already happen, so the camera adds a video source to a setup that exists rather than asking a room to be rebuilt around it.
For teachers, tutors, students, artists and anyone whose work does not live entirely on a screen, that turns a document camera into more than another webcam. It gives the desk a direct path into the presentation.
Support and returns
Anything attached to an order placed on Amazon is handled by Amazon, replacements and refunds included. Raise it from the account you ordered with and nobody has to verify the purchase first, which is usually the part that slows these down.
Have the model name ready before you write. Focus behaviour, exposure range and image-flip controls differ between the PA-800, the KB700 and the manual-focus 8MP model, so the answer to a setup question changes depending on which one is on your desk.
Frequently Asked Questions
Pakotoo is a document camera brand focused on USB cameras for classrooms, remote teaching, presentations, live demonstrations and webcam use. Its current camera range includes 5MP and 8MP models with adjustable camera structures, built-in lighting, image-orientation controls, and support for common computer operating systems.
A Pakotoo document camera captures paper, books, handwriting, artwork, experiments and physical objects on a desk and sends the live image to a computer. Teachers can work through problems by hand, demonstrate a process, display a textbook page, or show an object without scanning it first. The camera can also be repositioned toward the presenter and used as a webcam.
The PA-800 is a 5MP model with autofocus and up to 2594 x 1944 resolution. It covers most everyday classroom, worksheet and presentation needs. The KB700 increases resolution to 8MP and 3264 x 2448, adds up to 10 levels of exposure adjustment, and uses a foldable articulated structure, which suits small text, detailed diagrams, artwork and anything that will be enlarged on a large display. Pakotoo also offers an 8MP model with manual focus, useful for three-dimensional subjects where the presenter wants to choose the exact surface that remains sharp.
Yes. Current Pakotoo document cameras are designed for A3 and A4 material. The KB700 covers a maximum area of approximately 16.5 x 11.6 inches, which corresponds closely to A3 size. A larger A3 working area also helps when presenting smaller documents, because an A4 or US Letter page can sit beneath the camera with additional room for writing, rulers, manipulatives or other demonstration materials.
Current Pakotoo USB document cameras support Windows, macOS and ChromeOS, with Linux support also listed for current models. The computer must support a standard USB camera input. After connecting the camera, the computer or conferencing application may continue using its built-in webcam, so select the external USB camera manually in the application video settings if the Pakotoo image does not appear automatically.
Dedicated Pakotoo software is not normally required. The camera connects through USB and works as a camera source inside compatible operating systems and applications. This does not mean the correct camera will always be selected automatically. In Zoom, Google Meet, OBS, Microsoft Teams or another application, open the video settings and select the Pakotoo or USB camera source when necessary.
No. The current Pakotoo USB document cameras do not provide direct HDMI output to a projector. The normal setup is Pakotoo camera to computer by USB, then computer to projector through the computer display connection. This allows the same live image to appear on a classroom screen and also be recorded or shared through conferencing software.
The current models are designed for computers and are not intended for direct use with iPads or smartphones. A USB-C connector alone does not guarantee compatibility, because the receiving device must also support the camera correctly. For the intended setup, connect the Pakotoo camera to a Windows PC, Mac, Chromebook or supported Linux computer.
Yes. Pakotoo cameras can provide video to software that accepts a standard computer camera input, including Zoom, Google Meet, Microsoft Teams, OBS, Skype and similar applications. The camera can show a document during an online lesson, capture a desktop demonstration for recording, or point toward the presenter for webcam use. OBS can also combine the document-camera feed with screen capture or other video sources.
Yes. The camera head can be repositioned from the desk toward the presenter and selected as the webcam source on the computer. This is especially useful in lessons and presentations that switch between face-to-face explanation and tabletop work. A fixed eye-level webcam may still provide more natural framing for long video meetings where no document or physical object needs to be shown.
A 5MP camera such as the PA-800 captures up to approximately 2594 x 1944 pixels. An 8MP Pakotoo model can reach 3264 x 2448 pixels. The difference matters most when the subject contains small details. Fine print, technical drawings, artwork, electronic components and other detailed subjects retain more information at 8MP, particularly when part of the image is enlarged. Standard worksheets and ordinary handwriting usually do not require the maximum available resolution.
It depends on the model. The PA-800 and KB700 use button-activated autofocus, so you press the AF button after changing camera height, replacing the subject, or moving from a flat document to a thicker object. The newer 8MP model uses manual focus. Manual adjustment requires more input from the presenter but provides direct control when several surfaces sit at different distances from the lens.
The built-in LED adds light directly to the work area. Exposure control changes how bright the captured image appears. They solve different problems: increase the LED level when the subject itself is poorly illuminated, and adjust exposure when the overall camera image is too dark or bright. The PA-800 offers three LED levels and five exposure levels, and the KB700 provides three LED levels with up to ten exposure settings. Maximum brightness is not always the best setting, because glossy pages can reflect the LED and white paper can lose visible detail when it is overexposed.
Yes. Pakotoo includes hardware image-orientation controls on its current document cameras. The KB700 can reverse the image horizontally and vertically. The current 8MP model also supports image inversion, and the PA-800 provides horizontal mirroring control. These controls are useful after rotating the camera arm or when an application displays the camera feed in an inconvenient orientation. Keep in mind that some video applications mirror only the presenter local preview, so check what the audience actually sees before correcting an image that may already be transmitted normally.
Pakotoo develops practical computer-connected cameras for people who need to bring physical work into a digital presentation. The products are built around a straightforward use case: place something beneath the lens and make it visible on a computer in real time. The current range emphasises adjustable positioning, A3 document coverage, high-resolution capture, built-in lighting and controls that can be operated directly from the camera. Instead of requiring a dedicated presentation system, Pakotoo cameras work with the computers and communication software already used in classrooms, home offices and presentation spaces.
One Cable, Whatever Is on the Desk
Connect it, pick it in your video settings, and the page in front of you becomes something a class or a meeting can read.
